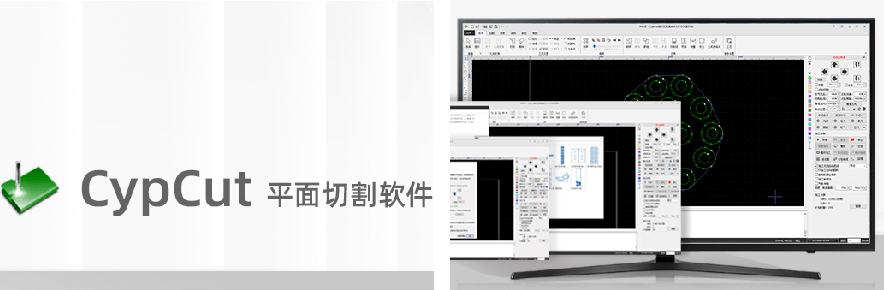

Cypcut Automatic Edge finding and Cutting Function

Cypcut Automatic Edge finding and Cutting Function:

Sometimes, the sheet metal on the workbench is skewed, it will cause materials waste during cutting. Then Cypcut automatic seeking function will solve this problem.

When we click the "Edge finding" button, the fiber laser cutter will automatically calculate the inclination angle of the metal sheet, also the coordinate system will rotate accordingly to ensure that the X direction of cutting is parallel to thelong straight edge of the plate.

After the fiber laser cutting machine starts the automatic edge finding function, the cutting head can start from a specified point and then automatically measure several points on the two vertical edges of the metal sheet, and automatically calculate the inclination angle of the metal sheet based on this to complete the cutting task.

Advantages:

The function is simple to operate, high accuracy and time-consuming, which can improve the utilization rate of the plate and facilitate programming, the cutting efficiency is improved greatly.

The composition of the automatic edge finding function:

It mainly includes CNC, servo control, linear drive, sensor, etc.
