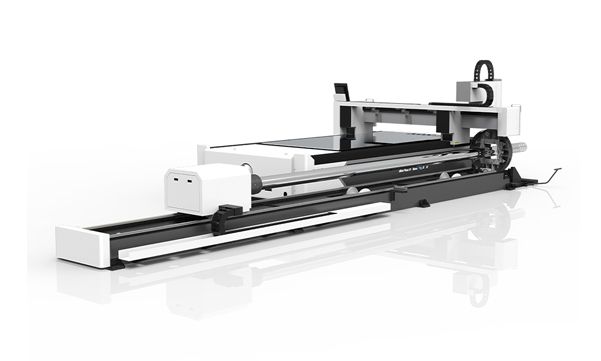

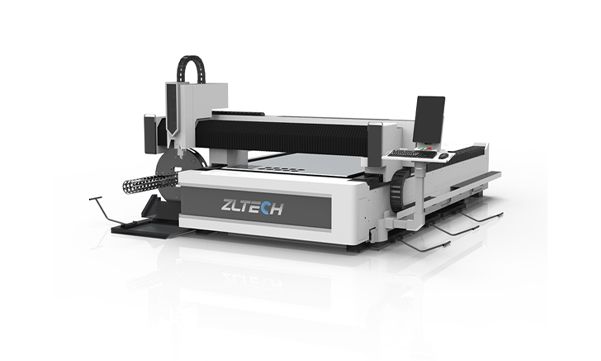

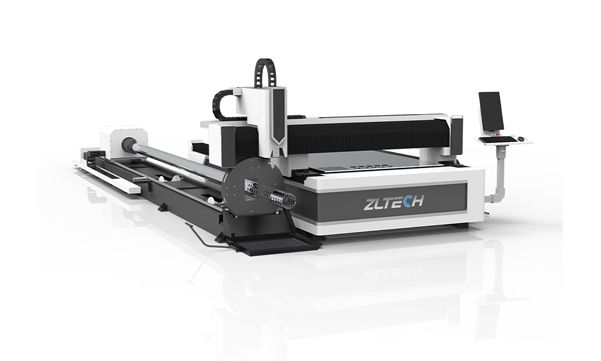

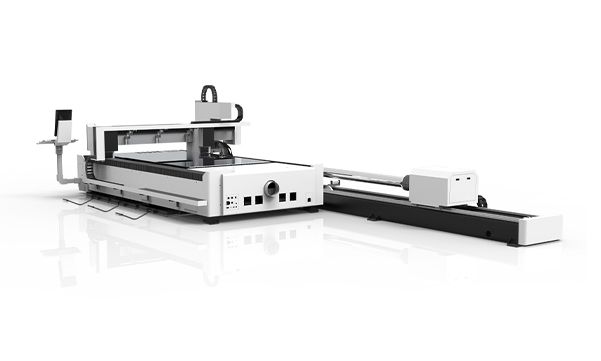

Small Tube And Sheet Fiber Laser Cutting Machine Metal Laser Cutter With Rotary

Brand : ZLTECH

Model : ZL1390AC

Category : Fiber Laser Cutting Machine

Payment : TT, Visa, Mastercard, Credit Cards, Paypal

Supply Ability : 200 Sets / Month

Warranty : 3 Years


Description

ZLTECH Laser Tube and Sheet Integrated Laser Cutting Machine is a multifunctional cutting equipment. One machine can be used for two purposes, which can cut metal sheets and pipes to meet the different processing needs of customers, greatly save input costs and site area, and improve production efficiency.


Fiber laser cutter can help  us cut many different metals, such as stainless steel, carbon steel, copper, aluminum, brass, gold, silver, iron, titanium, alloys, etc.


CNC fiber laser cutting machine can be applied to various industries, such as aviation, aerospace, electronics, electrical appliances, subway accessories, automobiles, precision accessories, ships, elevators, household appliances, craft gifts, decoration, advertising, metal external processing, kitchenware processing, etc.


1kw - 20kw CNC Fiber Laser Cutting Machine for Metals

Sheet and Tube Metal Laser Cutting Machine Fiber Laser Cutter for Steel, Aluminum, Titanium, Copper

Different thickness needs different laser power :

1kw - 20kw CNC Fiber Laser Cutting Machine for Metals


Main parts of fiber laser cutting machine :


Aviation Cast Aluminum Beam

• Machine adopts aviation cast aluminum beam, which is manufactured according to the aerospace standards and extruded with 4300 tons pressure.

• The beam is processed by T6 heat treatment which can make the beam obtain the highest strength and strong deformation resistance.

• Using ultra-high pressure tensile technology and light weight design, the beam weight is reduced by 30% compared with cast aluminum beam and the strength and rigidity are increased by more than 20%.

1kw - 20kw CNC Fiber Laser Cutting Machine for Metals

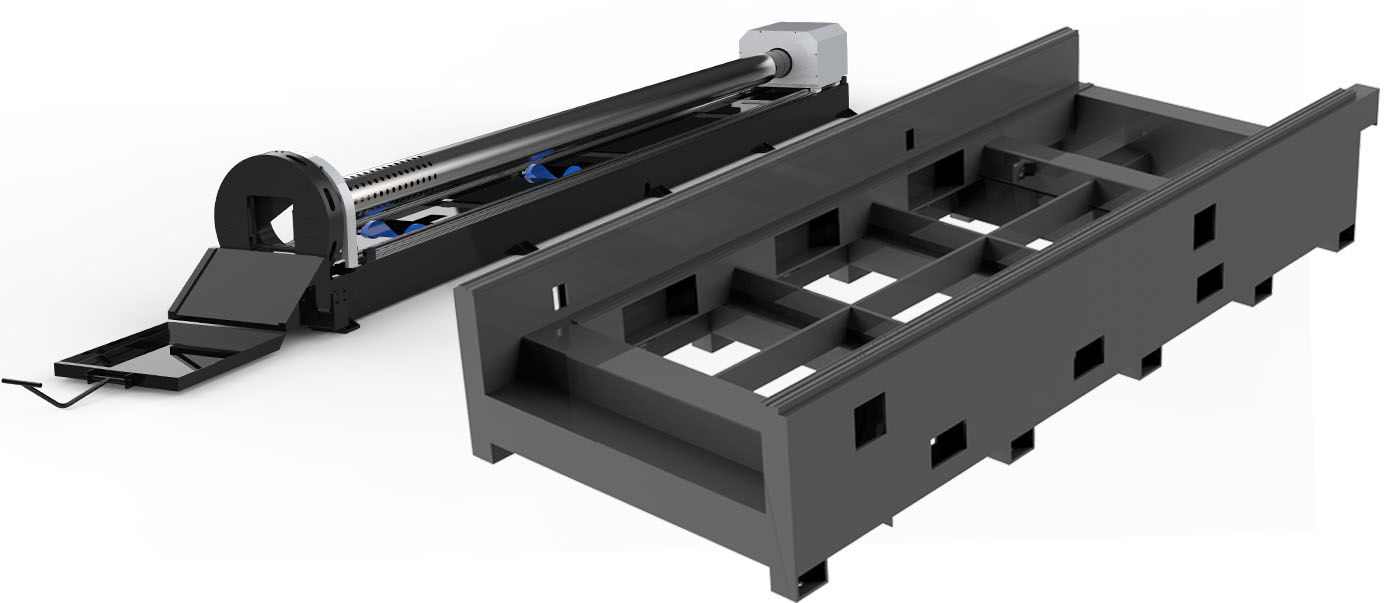

Super heavy Steel Welding Machine Bed

• The bed is welded with big thickness square tubes, which has stiffeners inside to increase the structure strength and tensile strength.

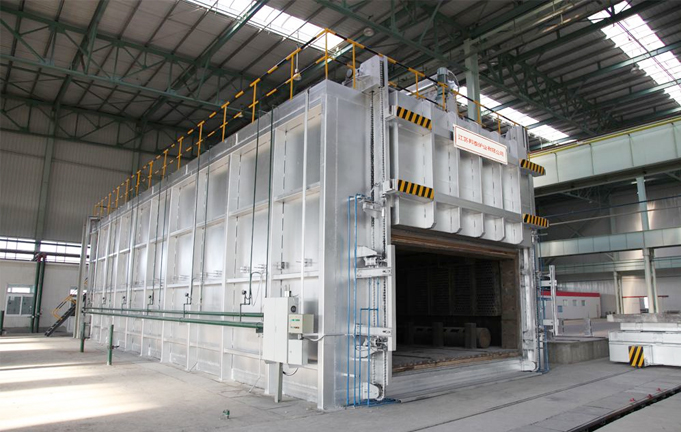

• With high temperature annealing and natural aging, the welding stress is eliminated, which can prevent the deformation of the bed , reduce vibration and guarantee a good cutting accuracy.

1300*900mm 3000mm Tube And Sheet Fiber Laser Cutting Machine Metal Laser Cutter With 170/230/360mm Rotary


Auto Focus Cutting Head

• Laser head with automatic focus function, which can adjust the focus automatically, no need to adjust it by hand. The software can change the focusing lenses automatically according to the different thickness of the materials. It can shorten the perforation time, improve the perforation quality and cutting speed. It’s simple, convenient and fast.

• Long life span

Full-circle water cooling around the focusing component, which can realize no heat, no fog with high power cutting, small volume cutting and long term cutting, the lifetime of the cutting head is improved greatly.

1kw - 20kw CNC Fiber Laser Cutting Machine for Metals


Intelligent operation software

• Adopts high definition toughened glass, intelligent touch, fast response and smoother operation. Ultra low power consumption and high resolution.

• The new intelligent alarm system is pushed to the interface through the control center to find abnormalities in advance, quickly eliminate and feed back, reduce hidden dangers, and there is no danger in remote alarm operation.

• Cypcut is one professional software for fiber laser cutting, easy operation and its is suitable for many different processing occasions.

1kw - 20kw CNC Fiber Laser Cutting Machine for Metals


Independent Control Cabinet

• Dust-proof

We put all electrical components and laser source into the independent control box, it is dust proof which can guarantee the life span of the components.

• Automatic Thermostat

The control cabinet is equipped with air conditioner which can keep the constant temperature automatically. It can prevent the high temperature damage for the components in summer.

1kw - 20kw CNC Fiber Laser Cutting Machine for Metals


Fast Transmission and Super Precision

• Adopts Japan Yaskawa motor, Japan Fuji motor or Taiwan Delta motor, with high precision, no step losing, high torque and low noise.

• Adopts Taiwan YYC / Germany HERION gears and Japan Shimpo / France MOTOVARIO / Germany Lead-motion reducers, which can make the machine position accuracy reach to 0.02mm

Sheet and Tube Metal Laser Cutting Machine Fiber Laser Cutter for Steel, Aluminum, Titanium, Copper


Machine Features:

(1) The efficiency of the fiber laser cutting machine is much higher than that of the traditional CO2 laser machine, and no complicated maintenance is required. With extremely fast cutting speed, it can cut 70m thick materials in one minute.

(2) In order to reduce electromagnetic interference, a control cabinet is added, and the laser and electrical components are placed separately. And with a small air conditioner, you can achieve a good cooling effect.

(3) This fiber laser cutting machine can achieve precise cutting on any metal, ensuring machine life and high cutting quality.

(4) The industrial fiber cutting machine is suitable for cutting all kinds of metal plates, such as stainless steel, carbon steel, aluminum, etc. It is mainly suitable for laser power above 2000W.

(5) The bed of this cutting machine is mostly welded by tube sheets. The thickness of the fuselage is stronger and more stable, and the precision is higher. Considering the weight and thickness of the processed material, the bed has been upgraded, and the total weight can reach 3 tons.

(6) The automatic focusing laser head has flexible cutting angle, high processing efficiency, and can realize regional cutting.

(7) The laser generator has a high photoelectric conversion rate, stable output power, and a high-quality and stable transmission system to ensure high cutting accuracy.



Parameters

ModelZL3015ACZL1390ACZL6015ACZl4020ACZL6020ACZL6025AC
Working Area(L*W)3000×1500mm1300*900mm6000×1500mm4000×2000mm6000×2000mm6000×2500mm
Effective Round Tube Cutting Diameterφ10-φ360mm
Effective Square Tube Cutting Diameter□10-□360mm
Tube Length3000mm/6000mm/9000mm/12000mm ( Customized )
Laser Power1000W-20000W
Repeat positioning accuracy±0.02mm
Maximum speed120m/min
Acceleration0.8G/ 1.0G / 1.5G / 2.5G / 4G
Power consumption<10KW
ChuckBEUT Pneumatic chuck
Tube cutting transmit systemGear transmit
Sheet cutting transmit systemDual Rack & Pinion type
Cutting materials shapeSquare pipe, round pipe, L - shaped pipe, channel steel pipe and other shaped pipe


Strong Service Team

Small Tube And Sheet Fiber Laser Cutting Machine Metal Laser Cutter With Rotary

Small Tube And Sheet Fiber Laser Cutting Machine Metal Laser Cutter With Rotary

Small Tube And Sheet Fiber Laser Cutting Machine Metal Laser Cutter With Rotary

Small Tube And Sheet Fiber Laser Cutting Machine Metal Laser Cutter With Rotary

Small Tube And Sheet Fiber Laser Cutting Machine Metal Laser Cutter With Rotary

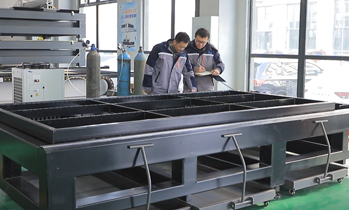

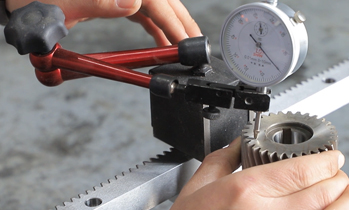

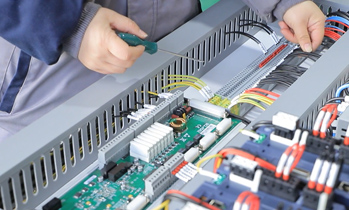

Quality Control & Testing

Small Tube And Sheet Fiber Laser Cutting Machine Metal Laser Cutter With Rotary

Small Tube And Sheet Fiber Laser Cutting Machine Metal Laser Cutter With Rotary

Small Tube And Sheet Fiber Laser Cutting Machine Metal Laser Cutter With Rotary

Small Tube And Sheet Fiber Laser Cutting Machine Metal Laser Cutter With Rotary

Small Tube And Sheet Fiber Laser Cutting Machine Metal Laser Cutter With Rotary
