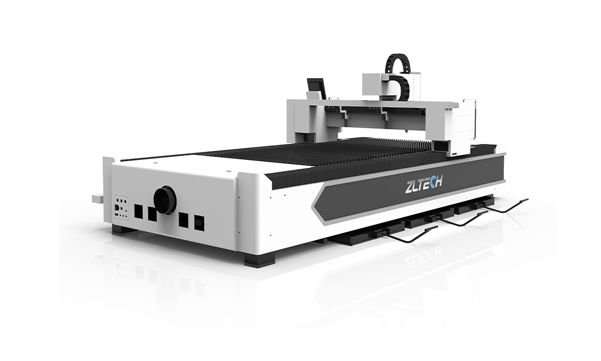

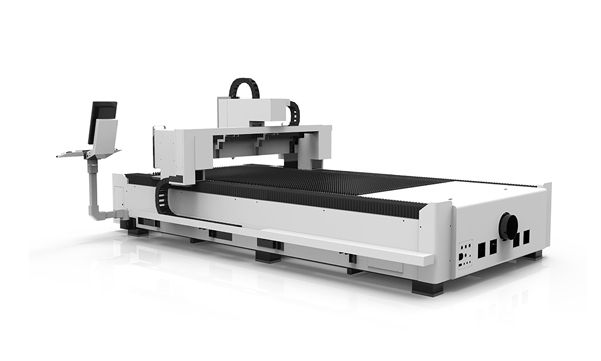

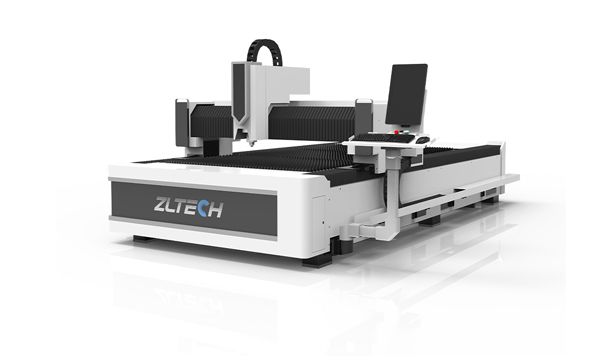

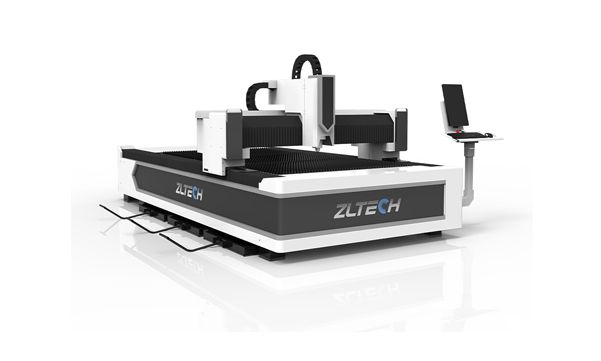

1000w - 20000w CNC Sheet Metal Fiber Laser Cutting Machine for Steel, Copper, Gold, Iron

Fiber laser cutter is a new type of metal laser cutting machine. The laser beam with high energy will focus on surface of workpiece, and the irradiated area will be melted and vaporized instantly. The slag will be blowed away by the assist gas. Compared with ordinary Co2 laser cutting machines, fiber laser cutting machine saves space and gas consumption, and its photoelectric conversion rate is higher.

Fiber laser cutter can help  us cut many different metals, such as stainless steel, carbon steel, copper, aluminum, brass, gold, silver, iron, titanium, alloys, etc.

CNC fiber laser cutting machine can be applied to various industries, such as aviation, aerospace, electronics, electrical appliances, subway accessories, automobiles, precision accessories, ships, elevators, household appliances, craft gifts, decoration, advertising, metal external processing, kitchenware processing, etc.

Different thickness needs different laser power :

Main parts of fiber laser cutting machine :

Aviation Cast Aluminum Beam

• Machine adopts aviation cast aluminum beam, which is manufactured according to the aerospace standards and extruded with 4300 tons pressure.

• The beam is processed by T6 heat treatment which can make the beam obtain the highest strength and strong deformation resistance.

• Using ultra-high pressure tensile technology and light weight design, the beam weight is reduced by 30% compared with cast aluminum beam and the strength and rigidity are increased by more than 20%.

Super heavy Steel Welding Machine Bed

• The bed is welded with big thickness square tubes, which has stiffeners inside to increase the structure strength and tensile strength.

• With high temperature annealing and natural aging, the welding stress is eliminated, which can prevent the deformation of the bed , reduce vibration and guarantee a good cutting accuracy.

Auto Focus Cutting Head

• Laser head with automatic focus function, which can adjust the focus automatically, no need to adjust it by hand. The software can change the focusing lenses automatically according to the different thickness of the materials. It can shorten the perforation time, improve the perforation quality and cutting speed. It’s simple, convenient and fast.

• Long life span

Full-circle water cooling around the focusing component, which can realize no heat, no fog with high power cutting, small volume cutting and long term cutting, the lifetime of the cutting head is improved greatly.

Intelligent operation software

• Adopts high definition toughened glass, intelligent touch, fast response and smoother operation. Ultra low power consumption and high resolution.

• The new intelligent alarm system is pushed to the interface through the control center to find abnormalities in advance, quickly eliminate and feed back, reduce hidden dangers, and there is no danger in remote alarm operation.

• Cypcut is one professional software for fiber laser cutting, easy operation and its is suitable for many different processing occasions.

Independent Control Cabinet

• Dust-proof

We put all electrical components and laser source into the independent control box, it is dust proof which can guarantee the life span of the components.

• Automatic Thermostat

The control cabinet is equipped with air conditioner which can keep the constant temperature automatically. It can prevent the high temperature damage for the components in summer.

Fast Transmission and Super Precision

• Adopts Japan Yaskawa motor, Japan Fuji motor or Taiwan Delta motor, with high precision, no step losing, high torque and low noise.

• Adopts Taiwan YYC / Germany HERION gears and Japan Shimpo / France MOTOVARIO / Germany Lead-motion reducers, which can make the machine position accuracy reach to 0.02mm
