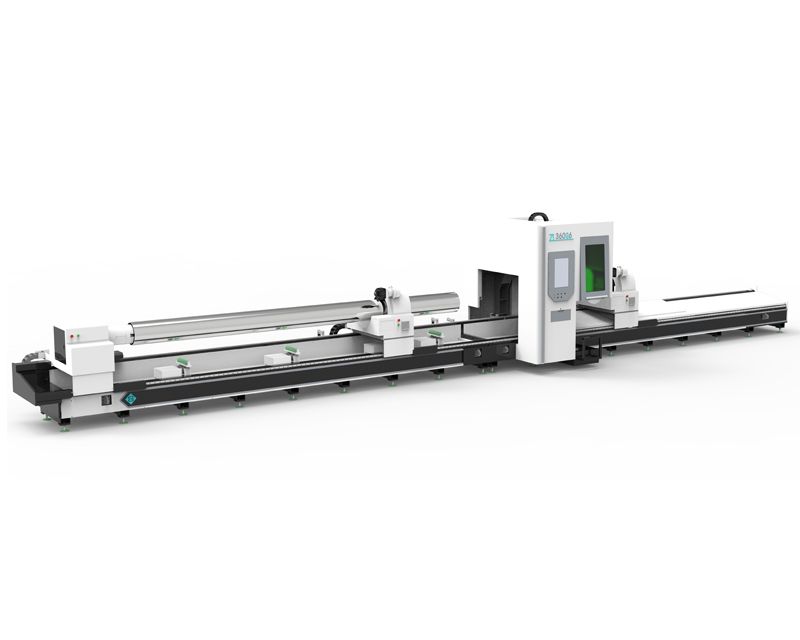

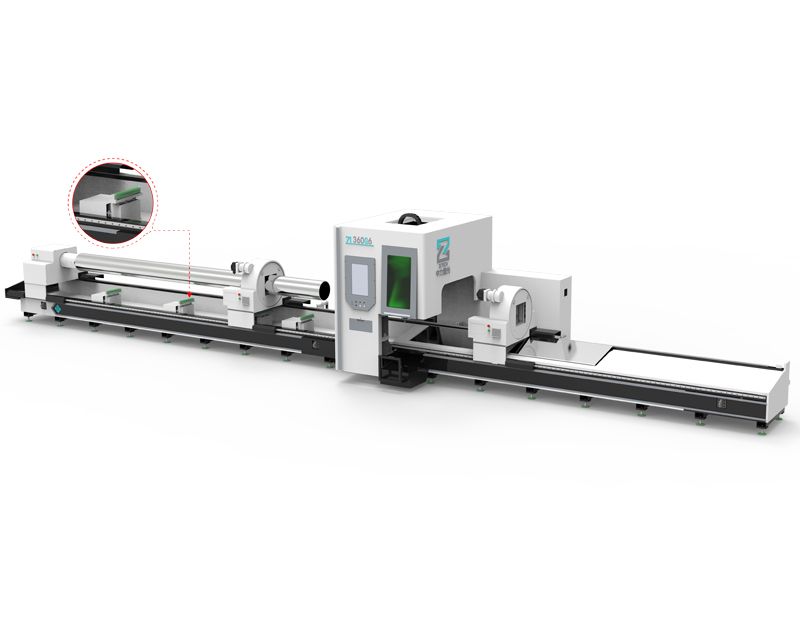

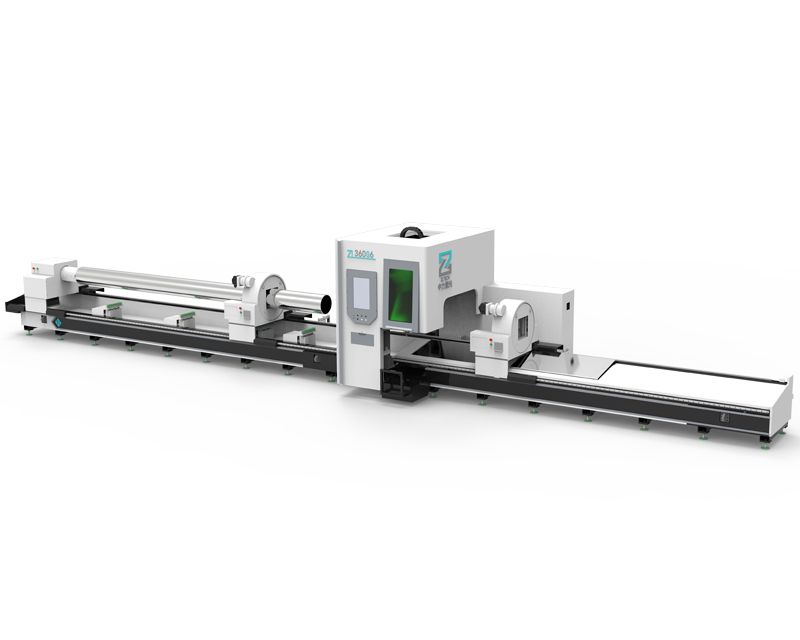

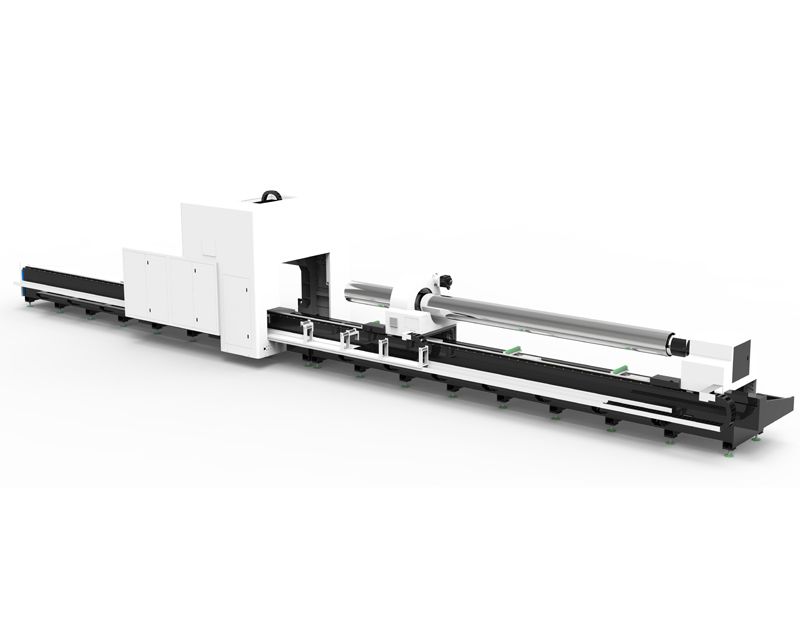

Three Chuck Tube Metal Laser Cutting Machine With No Tailing

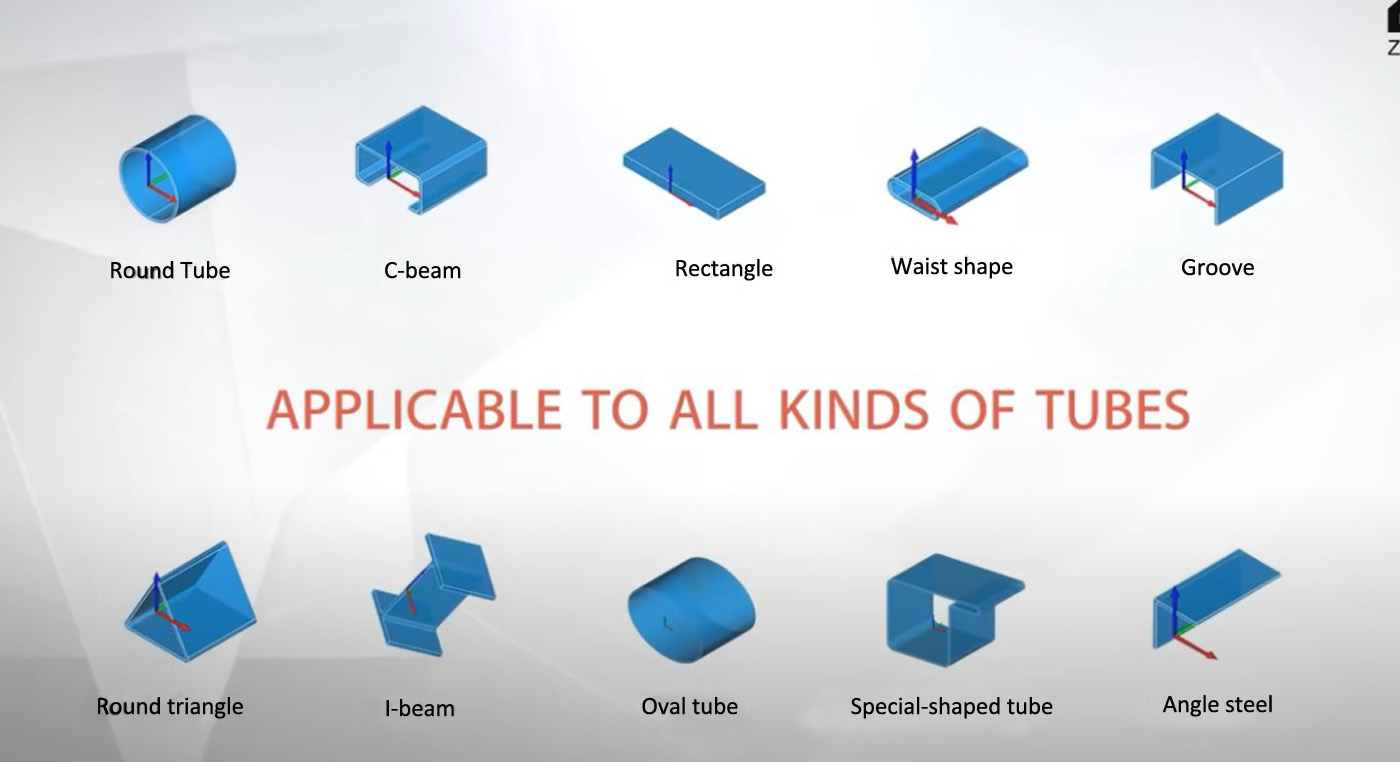

Tube laser cutting machine adopts with FSCUT3000S system, which is designed for tube cutting control, support standard tube(retangle, circle, oval, ellipse and obround etc.) , free form , and steel channels(T/U/H/L shape) production of high precision and efficiency.

4. One-key self-centering, fast clamping, rapid cutting.

5. Three-point clamping to correct pipe bending, prevent inertial shaking and ensure cutting accuracy.

6. The clamping force of the chuck can be adjusted according to the wall thickness of the pipe, which is convenient and efficient.

7. The rear chuck brakes quickly to ensure pipe cutting accuracy.

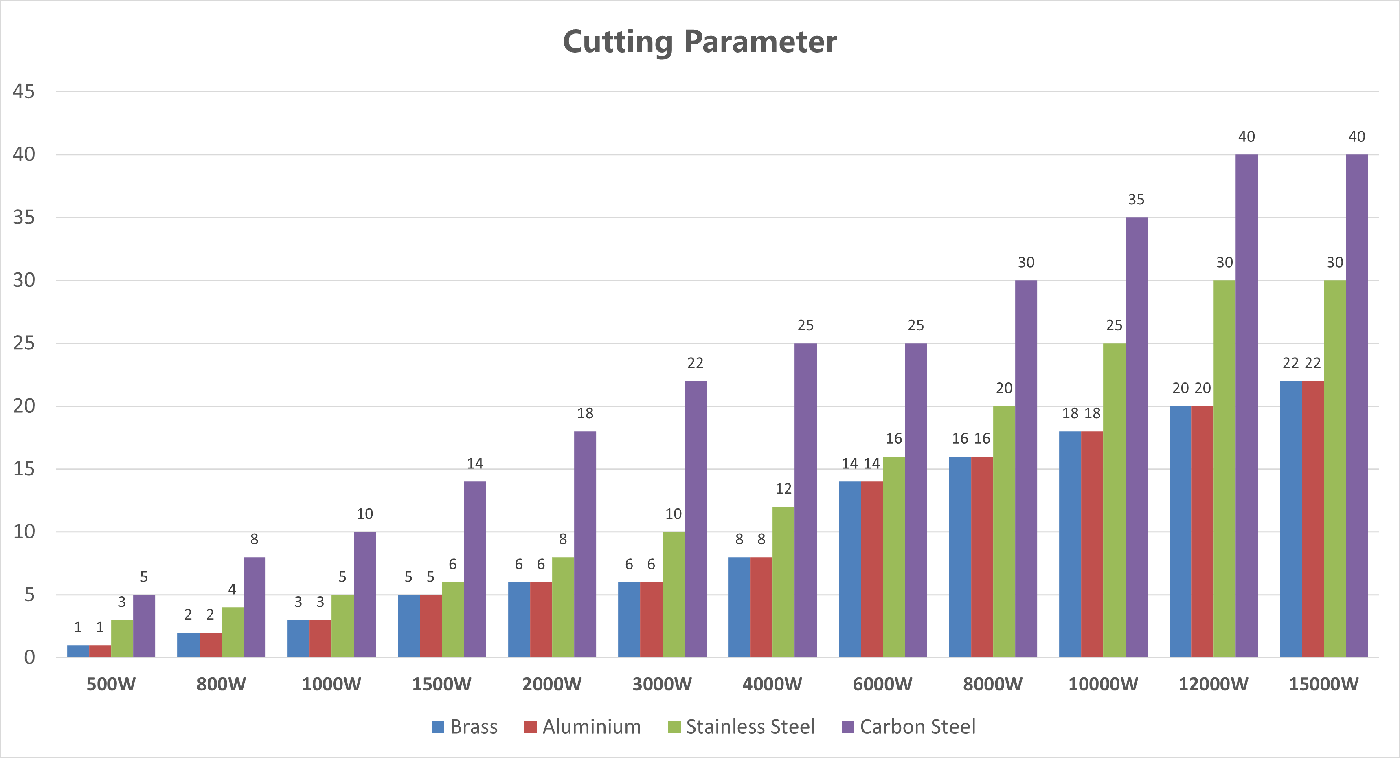

Different thickness need different laser power :

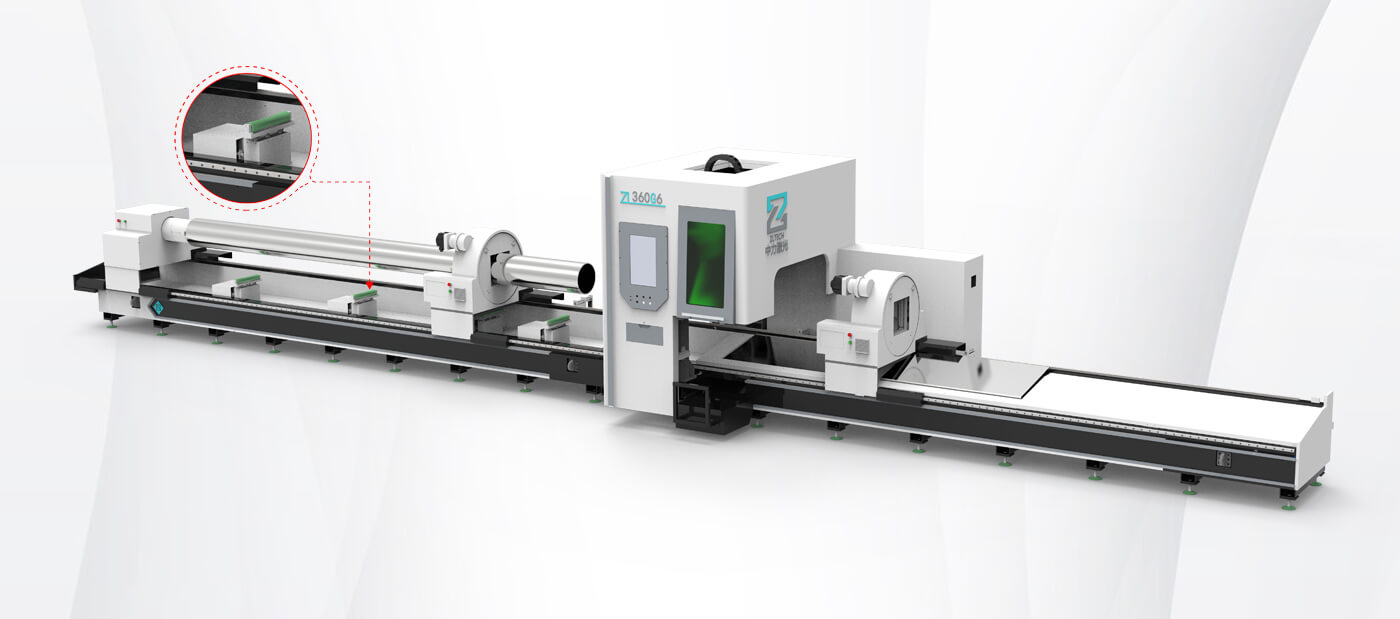

Main parts of fiber laser cutting machine :

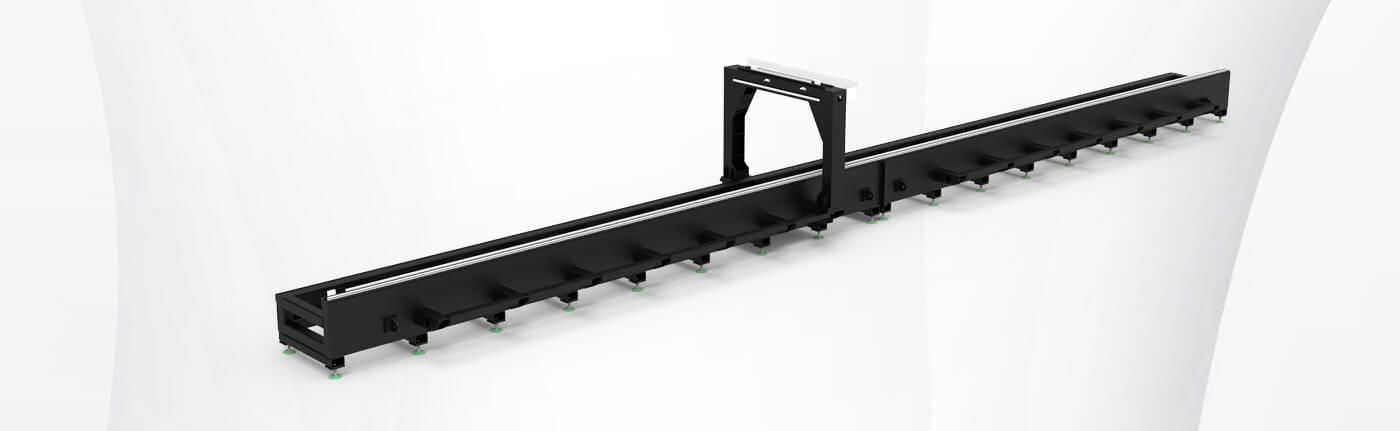

Integrated Machine Bed:

•The unique industrial structure design gives it maximum stability and higher vibration resistance and damping quality.

•The compact spacing of 650mm ensures the agility of the chuck and the stability during high-speed driving.

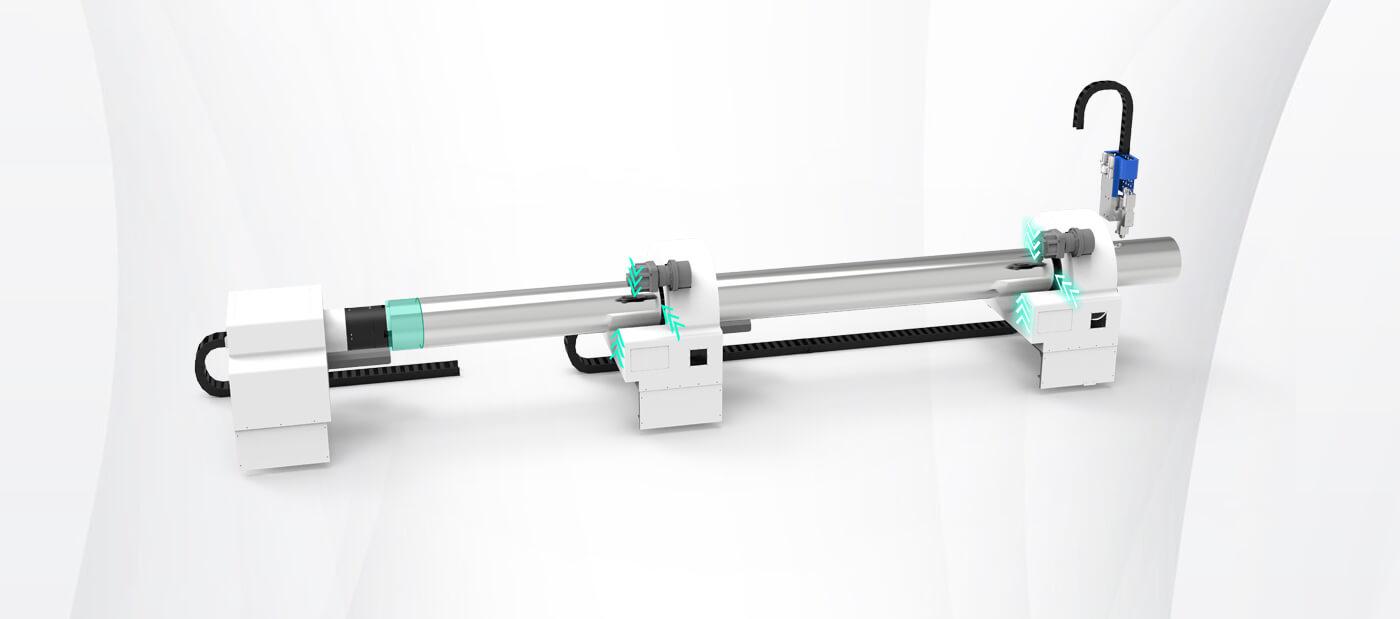

Three Pneumatic Chucks, stable clamping & stable cutting

• One-key self-centering, fast clamping, rapid cutting;

• Three-point clamping to correct pipe bending, prevent inertial shaking and ensure cutting accuracy;

• The clamping force of the chuck can be adjusted according to the wall thickness of the pipe, which is convenient and efficient;

• The rear chuck brakes quickly to ensure pipe cutting accuracy.

Double-sided follow-up support device ：

• Unique structure design to prevent tube sagging deformation.

• Real-time feeding to improve cutting accuracy and stability, and also prolong the service life of chuck and transmission structure. It has strong stability, vibration resistance and excellent damping quality.

Auto Focus Cutting Head

• Laser head with automatic focus function, which can adjust the focus automatically, no need to adjust it by hand. The software can change the focusing lenses automatically according to the different thickness of the materials. It can shorten the perforation time, improve the perforation quality and cutting speed. It’s simple, convenient and fast.

• Long life span

Full-circle water cooling around the focusing component, which can realize no heat, no fog with high power cutting, small volume cutting and long term cutting, the lifetime of the cutting head is improved greatly.

Three-Chuck Tube Cutting System, Intelligent Control

• With professional pipe cutting machine bus control system, the system response is fast, and the anti-interference ability is strong.

• With the integration of control system,it will realize the real-time compensation pipe center deviation, and reduce the requirements of pipe clamp to improve efficiency of higher perforation accuracy and more accurate cutting.

• Based on bus real-time system and integrated control, the pipe cutting angle speed is faster and angle following is more stable, which makes the cutting quality more reliable.

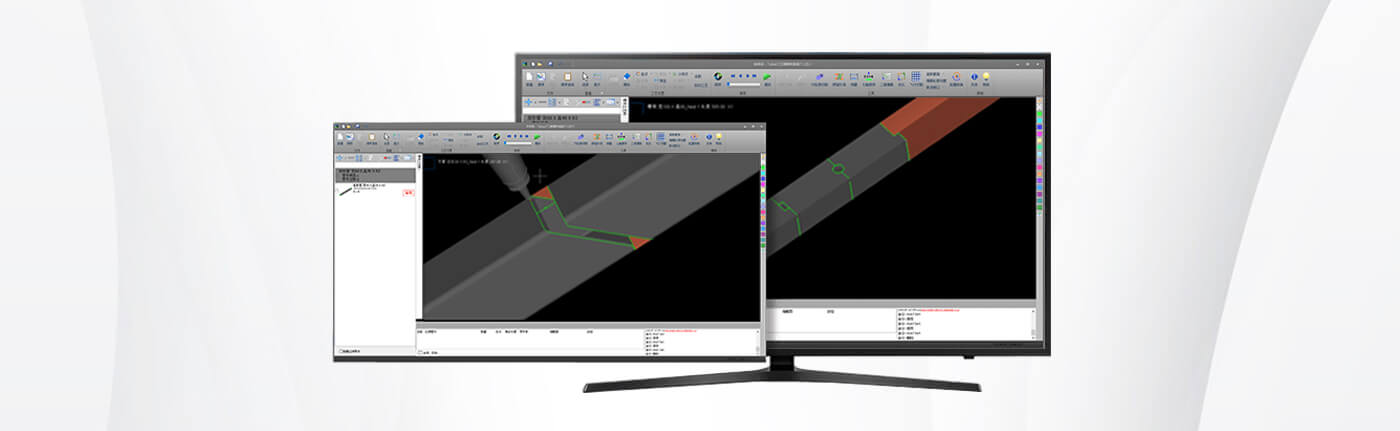

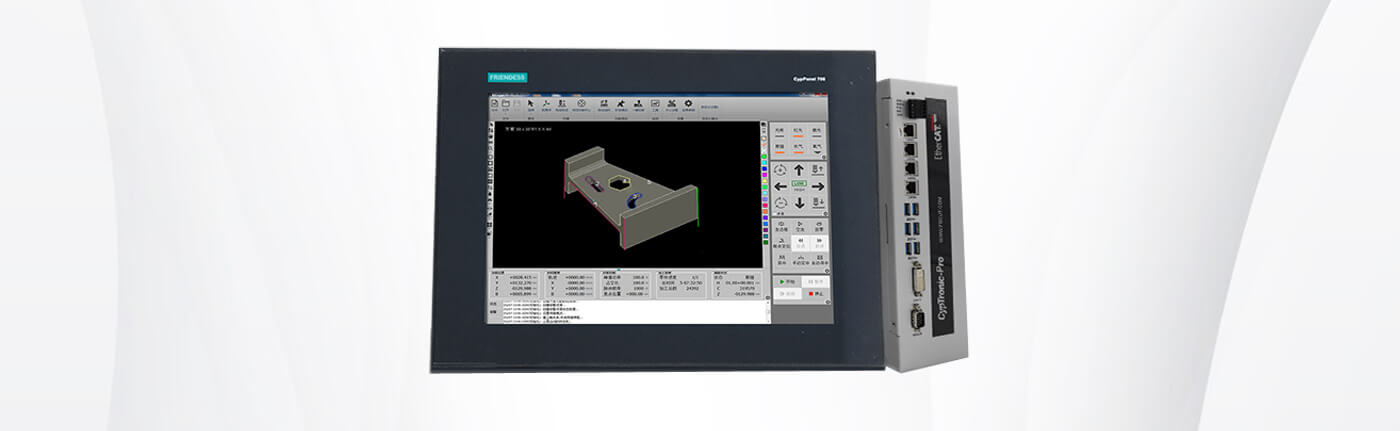

3D tube nesting software TubesT

TubesT is a 3D tube nesting software . From parts drawing and modification, full type compensation, strategic nesting to report generation, using TubesT will meet and exceed your production needs.
